Your position: Home > Products > 6-Laboratory Products > 6-1 Centrifuge >
High Speed Mini Centrifuge
- TEL：+8618605320580(Whatsapp）
- EMAIL:info@luckmed.com
- Product description: High Speed Mini Centrifuge Powerful personal centrifuge: Powerful centrifugal force 15100xg and Max speed 15000rpm, serves many applications Brushless DC motor drive quickly and effortlessly accelerates the rotor to the set speed The rotor
Product introduction

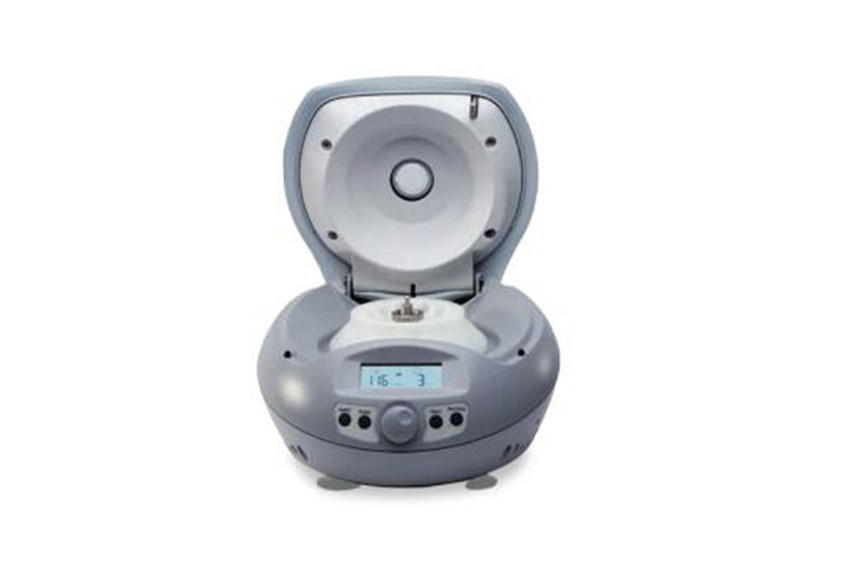

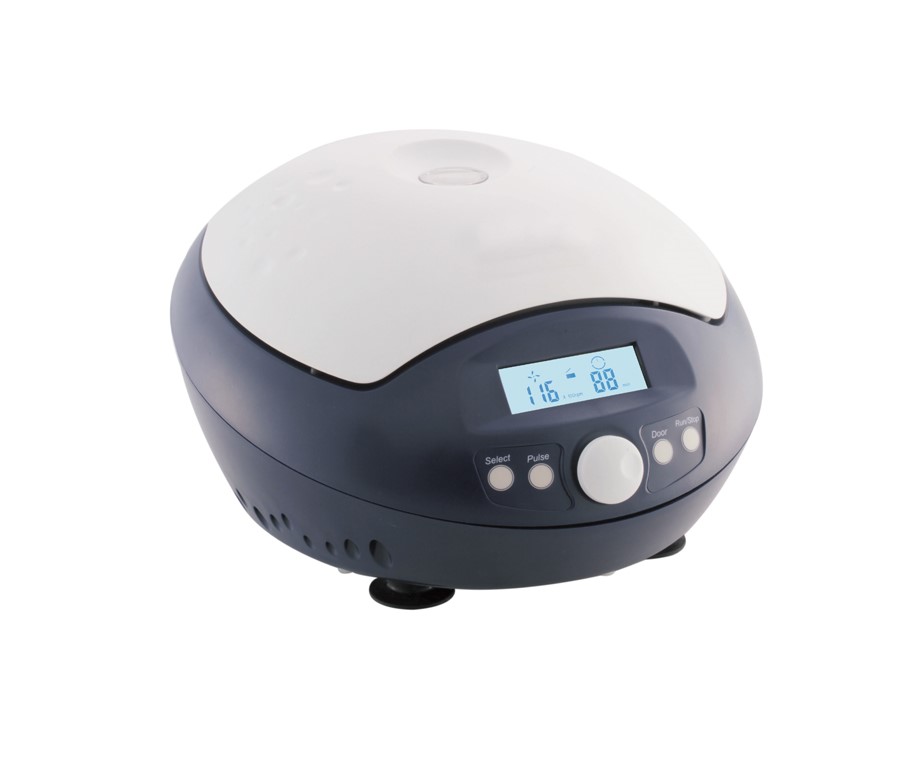

HIGH SPEED MINI CENTRIFUGE
Powerful personal centrifuge:
• Powerful centrifugal force 15100xg and Max speed 15000rpm, serves many applications
• Brushless DC motor drive quickly and effortlessly accelerates the rotor to the set speed
• The rotor is designed for 1.5/2.0mL tubes and smaller 0.2mL and 0.5mL tubes through use of adapters.
• Quiet working, low noise ≤ 56dB
Conforms to international safety standards and regulations:
• D2012 has tested according to IEC/EN 61010-1.
• Cast iron chassis with low gravity, provides stable and reliable running at maximum speed
• Multi voltage design with high speed accuracy and reliable running
• D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test according to IEC/EN61010-2-20.
Ergonomic design:
- User-friendly large LCD display show all information
- RPM or G-force can be set and displayed
- Parameters can be modified after the set speed is reached
- Quick spins are possible by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
- Automatic release the lid when operation has stopped to save processing time
- Easy-to-read processing display and sound alert
Specifications:
Conforms to international safety standards and regulations:
• D2012 has tested according to IEC/EN 61010-1.
• Cast iron chassis with low gravity, provides stable and reliable running at maximum speed
• Multi voltage design with high speed accuracy and reliable running
• D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test according to IEC/EN61010-2-20.
Ergonomic design:
- User-friendly large LCD display show all information
- RPM or G-force can be set and displayed
- Parameters can be modified after the set speed is reached
- Quick spins are possible by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
- Automatic release the lid when operation has stopped to save processing time
- Easy-to-read processing display and sound alert
Specifications:
| Max. Speed | 15000 rpm (500-15000rpm), increment: 100 rpm |
| Max. RCF | 15100 ×g, increment: 100 ×g |
| Speed Accuracy | ± 20 rpm |
| Rotor Capacity | 0.2ml/0.5ml/1.5ml/2ml × 12 |
| Run Time | 30sec-99min/Continous |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power | Single-phase, AC110V-240V, 50Hz/60Hz, 3A 100W |
| Noise level | ≤54dB |
| Acceleration/Braking time | 11s ↑ / 9s↓ |
| Dimension[D x W x H] | 225×245×140mm |
| Weight | 6kg |
| Certification | EMC, CE, FCC, ICES, cTUVus, CB |
| Advanced features | Speed/RCF switch, Short-time run function, sound-alert function |
