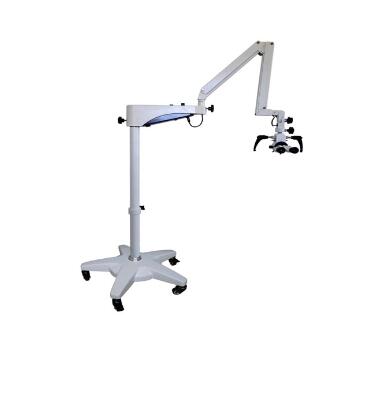

OPHTHALMOLOGY OPERATION MICROSCOPE

YSX120 Operation Microscope:

Observation angle: Straight

Magnification of observation: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total Magnification: 3X-12X

Linear field: 60.8-15.8mm

Fine focusing distance: 10mm

Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable

Lamp: 21V150W halogen lamp

Filter: Build-in green and yellow filter

With beamsplitter and TV adapter, C-mount 1/3 inch CCD camera attachable

With 2-part arm, counterweight adjustable and can be locked

With floor stand.

Power supply: AC220V50HZ/AC110V60HZ
