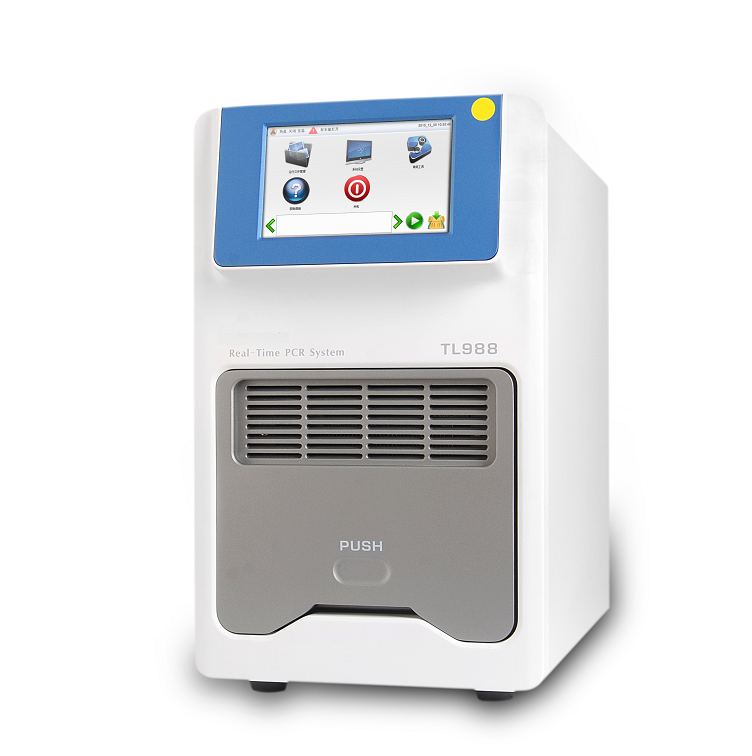

Four-channel Real-Time Quantitative PCR Detection System
- TEL：+8618605320580(Whatsapp）
- EMAIL:info@luckmed.com
- Product description: FOUR-CHANNEL REAL-TIME QUANTITATIVE PCR DETECTION SYSTEM Features 1. Standard 96-well design Applicable without skirt 96-well plate, 8 pipe, single pipe (transparent pipe, white pipe are applicable) 2. Innovative high precision temperature
Product introduction
FOUR-CHANNEL REAL-TIME QUANTITATIVE PCR DETECTION SYSTEM
Features

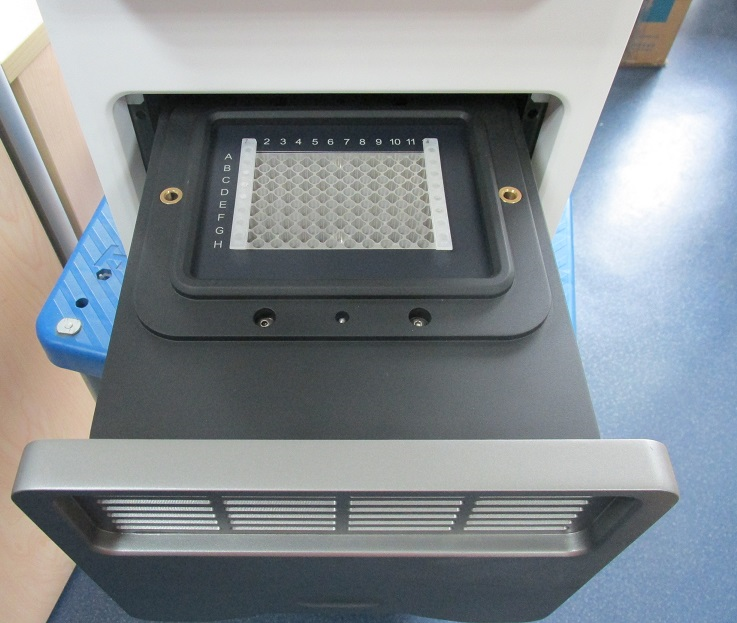

1. Standard 96-well design
Applicable without skirt 96-well plate, 8 pipe, single pipe (transparent pipe, white pipe are applicable)
2. Innovative high precision temperature control technology
Adopt new heat pipe technology to achieve precise temperature control, ensure temperature control accuracy and uniformity, and truly realize PCR optimization
3. Patented technology for high sensitivity optical design
PCR-specific highlight maintenance-free LED, automatic optical calibration technology; high-precision, fast optical scanning detection
4. More powerful, high precision, sensitivity, repeatability
■ High-sensitivity four-color detection with SNP analysis, genotyping, relative quantification, gene expression, etc.
■ Constant temperature, constant pressure hot cover design to effectively prevent reagent evaporation
5. Networked design
With standard Ethernet and computer connection, a single computer can connect multiple instruments at the same time for centralized control
Specification:
| Block formats | 96-well |
| Sample volume | 5–50 μL |
| Consumables | 0.1ml 96-well unskirted Plates; 0.1ml 8-strip tubes (Optical flat cap) |
| Max heating/cooling | 4.2°C/sec |
| Temperature range | 4.0–99.0°C |
| Temperature accuracy | ≤ ±0.3°C |
| Temperature steps | 1-99 |
| Temperature range | 100–120°C |
| Control | Automatic temperature and pressure setting |
| Analysis modes | Absolute quantification, Relative quantification, Melt curve analysis, High Resolution Melting |
