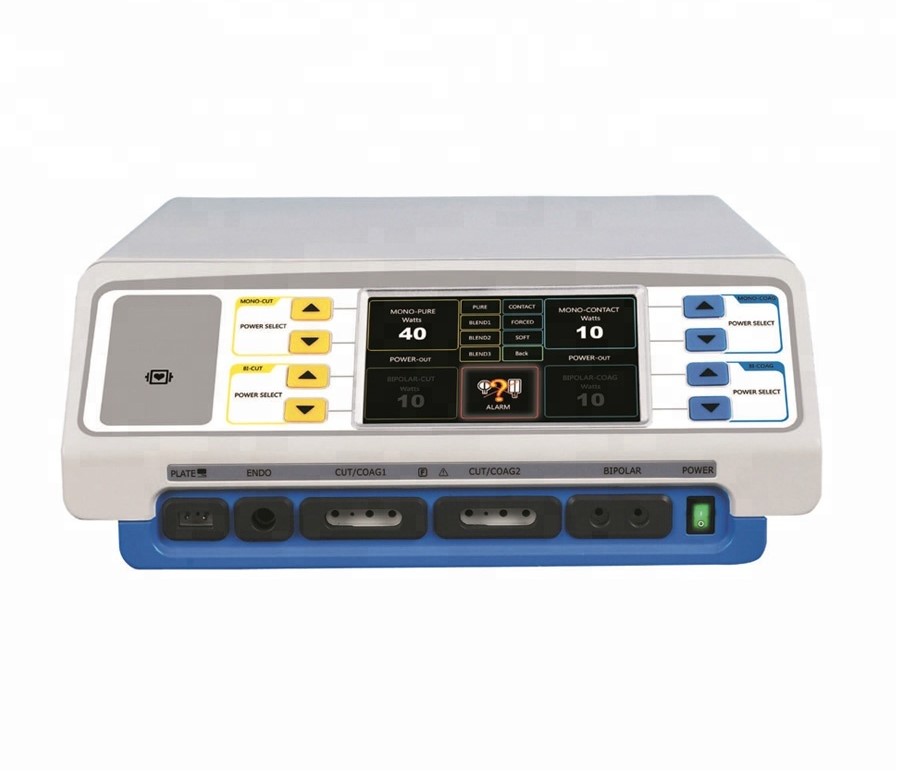

LCD Touch Screen Bipolar Electrosurgical Generator

Product introduction

1.Microprocessor controlled, LCD touch screen display(LK-2000AI).With audible and visual indicators and errors codes during the process of outputting.
2.Return Electrode Monitoring system and Power Peak,System, minimizing the risk of tissue damage.
3.Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
4.The ESU unit can be connected with laparoscope and endoscope, etc..
5.Protection against over-voltage and over-current.

6.Defibrillation protected.

7.Convection refrigeration without ventilator.
8.Have RS-232 serial port.

Specification:

• Mono-polar Cut:

a) Pure cut: 1W~400W( Load 800Ω)

b) blend1:    1W~300W (load 800Ω);
c) blend2:    1W~200W (load 800Ω);

d) blend3:    1W~150W(Load 800Ω)
• Mono-polar Coag:

e) Spray Coag:  1W~80W( Load 800Ω)

f ) Forced Coag:1W~120W( Load 800Ω)

g) Soft Coag:     1W~120W( Load 800Ω)

• Bipolar

h) Bipolar Coagulation: 1W~70W( Load 200Ω)

i ) Bipolar Cut: 1W~120W( Load 200Ω)

• Power Consumption: ≤1100VA
Technical Specifications

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a) Monopolar: 512KHz

                                      b) Bipolar: 1024KHz

Power rating: 1100VA±10%
