Fetal Doppler
- TEL：+86 18605320580
- EMAIL:info@luckmed.com
- Product description: Fetal Doppler Features: 1. Portable Fetal Doppler mainly applies to detect the fetal heartbeat rate from the twelfth week; 2. Built-in rechargeable battery can work continuously more than 4 hours; 3. 3.2 Color LCD can clearly display FHR da
Product introduction

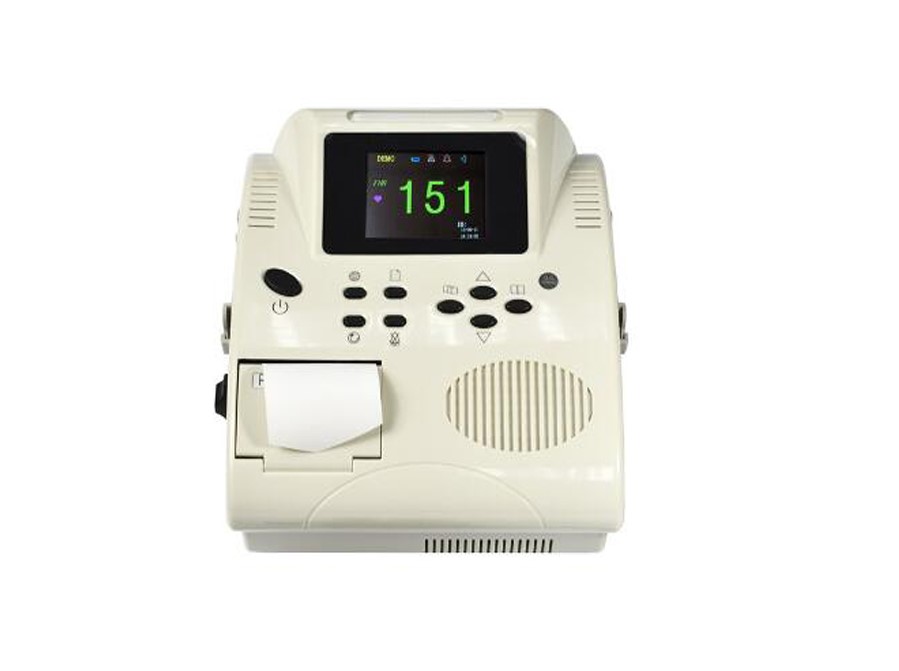

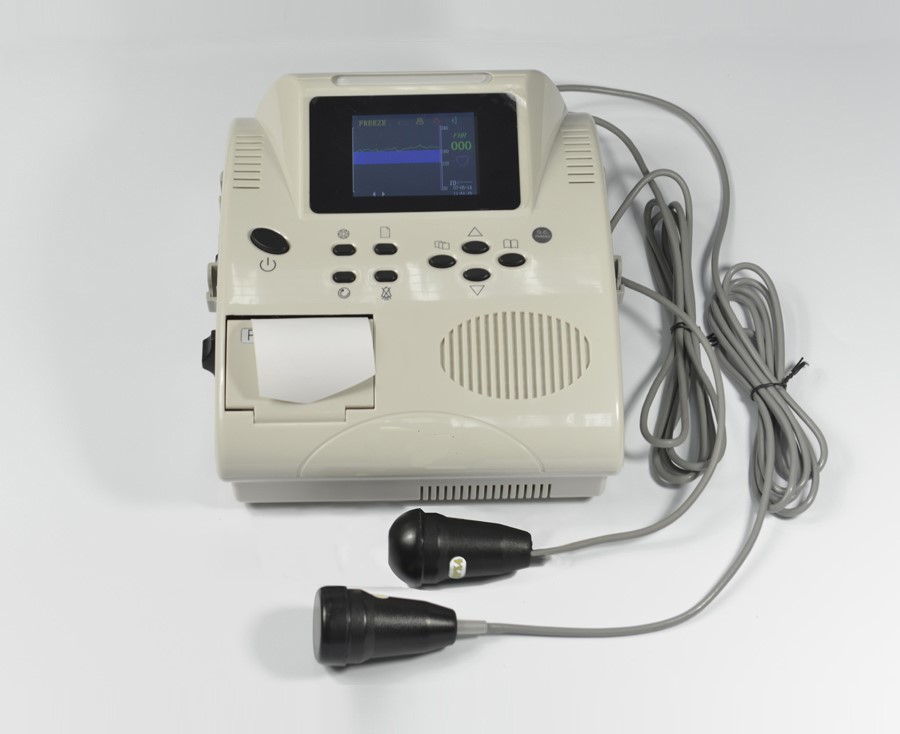

FETAL DOPPLER
Features:
1. Portable Fetal Doppler mainly applies to detect the fetal heartbeat rate from the twelfth week;
2. Built-in rechargeable battery can work continuously more than 4 hours;
3. 3.2'' Color LCD can clearly display FHR data, hear rate graphics, battery indicator, volume of sound and synchronous FHR signal;
4. Store and hold FHR data and graphics for up to 12 hours (for option);
5. Built-in printer with high precision can print synchronous FHR graphics clearly;
6. Alarm function when FHR is out of the normal range or battery power is in shortage;
7. Probes with high sensitivity can detect FHR and umbilical blood steam and much easier to interchange;
8. 2.0MHz probe(1.0MHz probe and 5.0MHz for option);
9. RS-232 port can connect the unit with a computer and store the data.
10.Software is option.
Specification:
1. Executive Standard: EN61266: 1995
2. Ultrasonic frequency: 2.0MHz/5.0MHz±10%
3. Ultrasonic intensity: ≤10mW/cm2
4. Comprehensive Sensitivity: ≥90dB
5. FHR range: 60--210bpm(±2bpm)
6. FHR alarm range: 60--210bpm adjustable
7. Sptp: ≤0.1MPa
8. Print speed: 1,2,3 cm/min
9. Battery: 14.4V/1600mAh Ni-MH rechargeable batteries
10. Adapter input voltage: AC 100--240V 50Hz/60Hz
11. Rechargeable battery input voltage(no load): DC 24V±1V
12. Input power: ≤30W
13. Maximum audio output intensity: ≤2W
14. Doppler frequency: 100--3000Hz
