LM-YSX180 Operating Microscope
- TEL：+86 18605320580
- EMAIL:info@luckmed.com
- Product description: LM-YSX180 OPERATING MICROSCOPE LM-YSX180 Operation Microscope using LED light source for coaxial illumination, with 0-180 inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featur
Product introduction

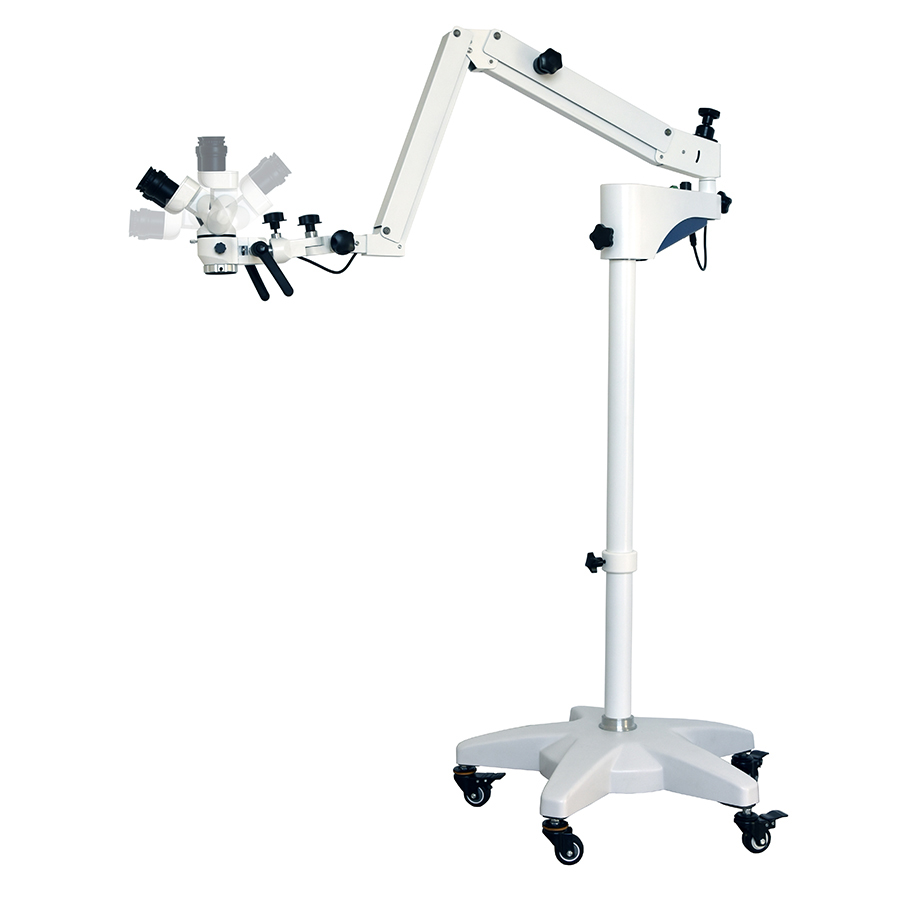

LM-YSX180 OPERATING MICROSCOPE
LM-YSX180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.
Specification:
| Magnification of binocular | 8X |
| Binocular | 0-180° inclinable |
| Magnification of eyepiece | 12.5X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±7D |
| Focal length of objective | F=200mm and F=250mm two objectives |
| Magnification changer | 3-step: 0.6X, 1X, 1.6X |
| Total magnification | 4.8X, 8X, 12.8X, 6X, 10X, 16X |
| Linear field | 50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
| Fine focusing distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
| Filter | Build-in green and yellow filters |
| Balancing arm | 2-part arm with universal joints, counterweight adjustable and can be locked |
| Floor stand | 2-part column fitted on the five-star base with casters |
| Power supply | AC100V-AC240V |
