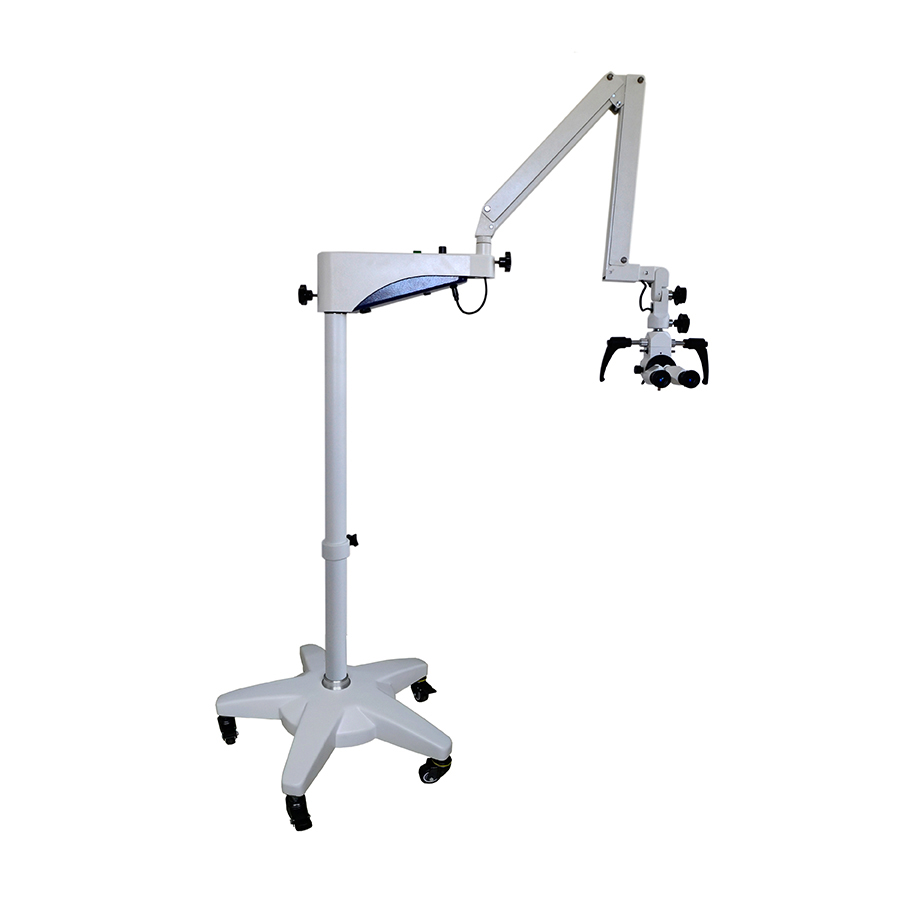

LM-YSX101 Operating Microscope
- TEL：+8618605320580(Whatsapp）
- EMAIL:info@luckmed.com
- Product description: LM-YSX101 HIGH QUALITY OPERATING MICROSCOPE LM-YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation.
Product introduction
LM-YSX101 HIGH QUALITY OPERATING MICROSCOPE
LM-YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.
Specification:
| Observation angle | Straight |
| Magnification of binocular | 6X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±5D |
| Focal length of objective | F=200mm and F=300mm two objectives |
| Magnification changer | 3-step: 0.6X, 1X, 1.6X |
| Total magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X |
| Linear field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
| Fine focusing distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx |
| Filter | Build-in green and yellow filters |
| Balancing arm | 2-part arm with universal joints |
| Floor stand | 2-part column fitted on the five-star base with casters |
| Power supply | AC100V-AC240V |
| Optional accessories | Objective F=250mm & F=400mm, Wall mount bracket |
